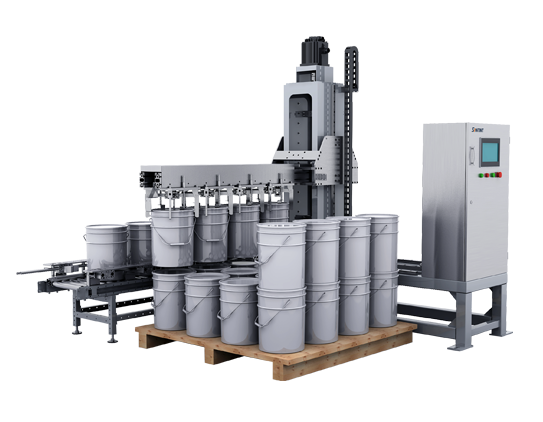

Cantilever Palletizer
Moveable design and multi-function palletizer apply to the needs of different sites.
FEATURES
Pail positioning grabs palletizing to make the palletizing modes more easy and efficient.
Programmable control, adjustable parameters (such as pail height, palletizing spacing, etc.) can be suitable for different pail size.
Servo motor drive, resetting to get a higher precision.
Automatic palletizing system, no agreement requires and docking is more easy.
PARAMETERS
| Efficiency | 12 pail/min |
| Conveyor speed | 5000mm/min |
| Air source | 0.6 Mpa |
| Air consumption | 0.5m³/min |
| Power supply | AC380V±10% 50HZ |
| Power | 4kw |
| Pallet size | 1000*1200*150mm 1200*1200*150mm |
| Pail size | φ300-340mm H300-380mm |
